ROCK DRILL EQUIPMENT [MINI DRILL RIG]
DESCRIPTION
Underground mini drilling equipment / Подземное и наземное буровое мини оборудование
HS-100MD
FEATURES
- MULTI PURPOSE: DTH drilling, Mini pilling, Exploration and auger.
- RADIO REMOTE CONTROL: All operations such as drilling, travelling and so on.
- DOUBLE CLAMP: Easy to break and make rod joints.
- EASY MAINTENANCE: Easy to change machine parts with 3D drawings.
- SAVING WORK BY USB 365 DAYS A YEAR

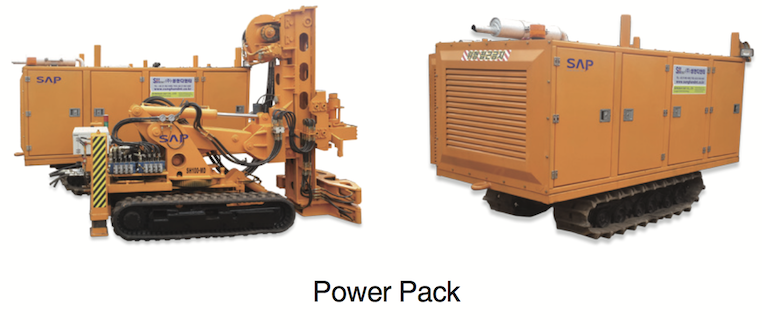

- POWER PACK: Consists of rubber track for good mobility and 2 of energy sources (electric motor and diesel engine).
- EASY TO MOVE UNDERGROUND AND ON A NARROW SITE
ADVANTAGES

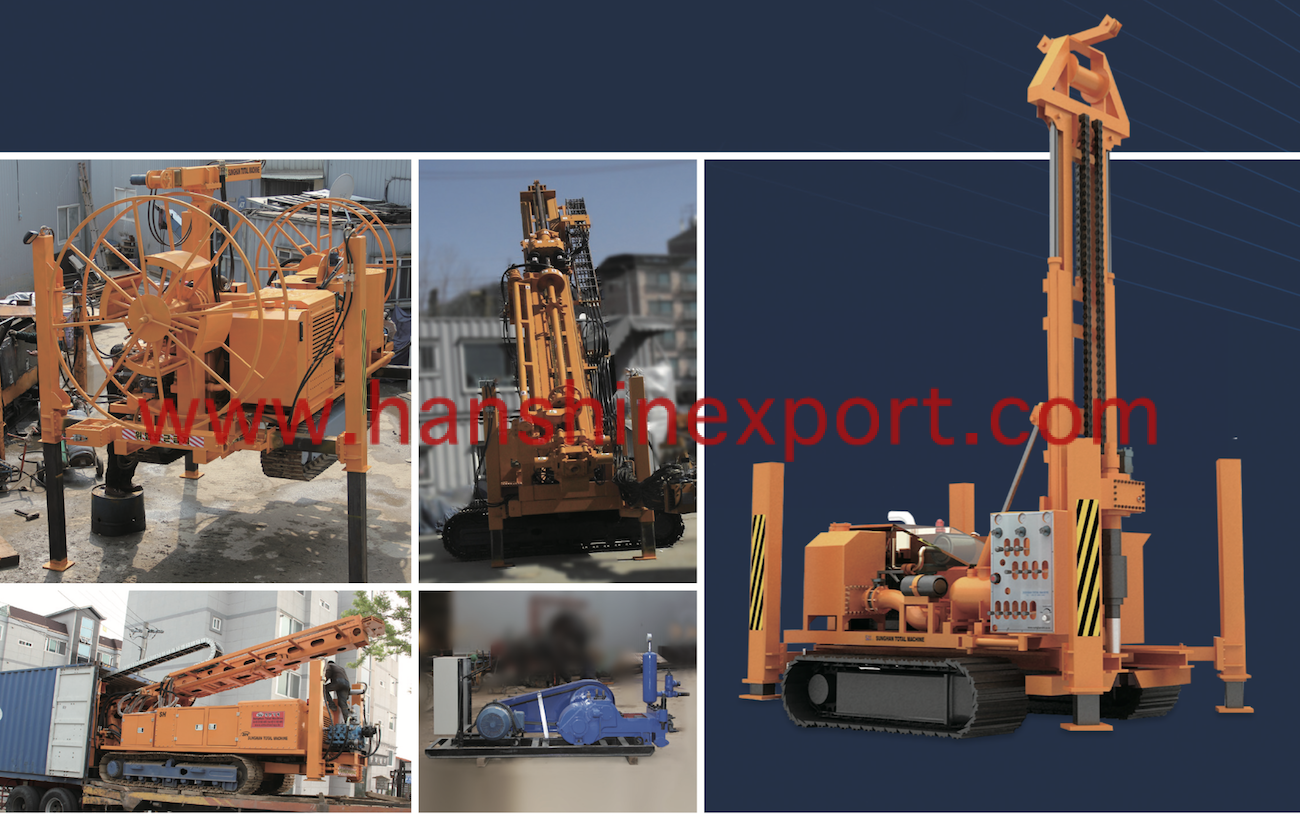

FULL SET

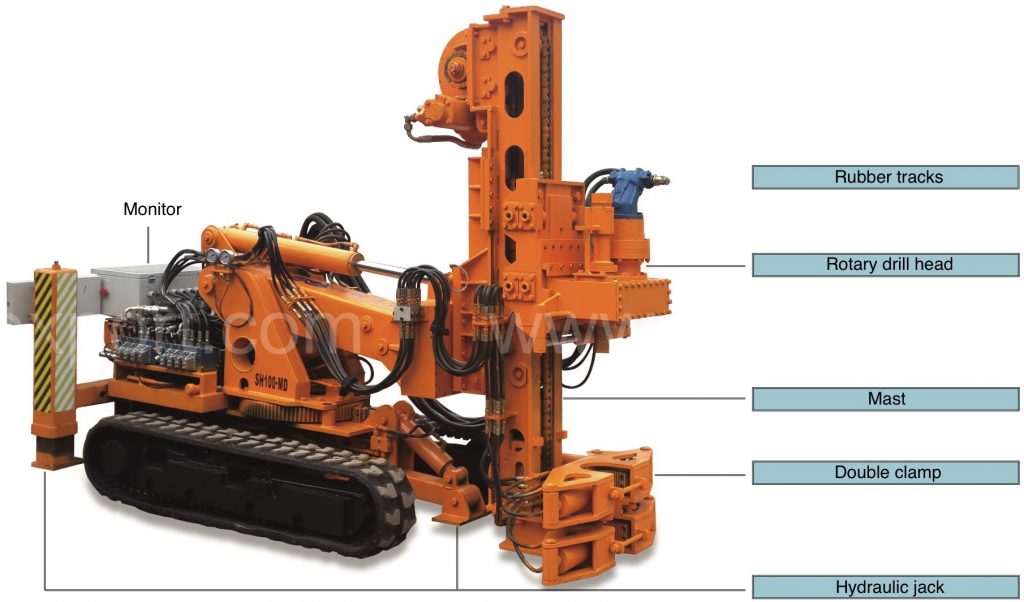

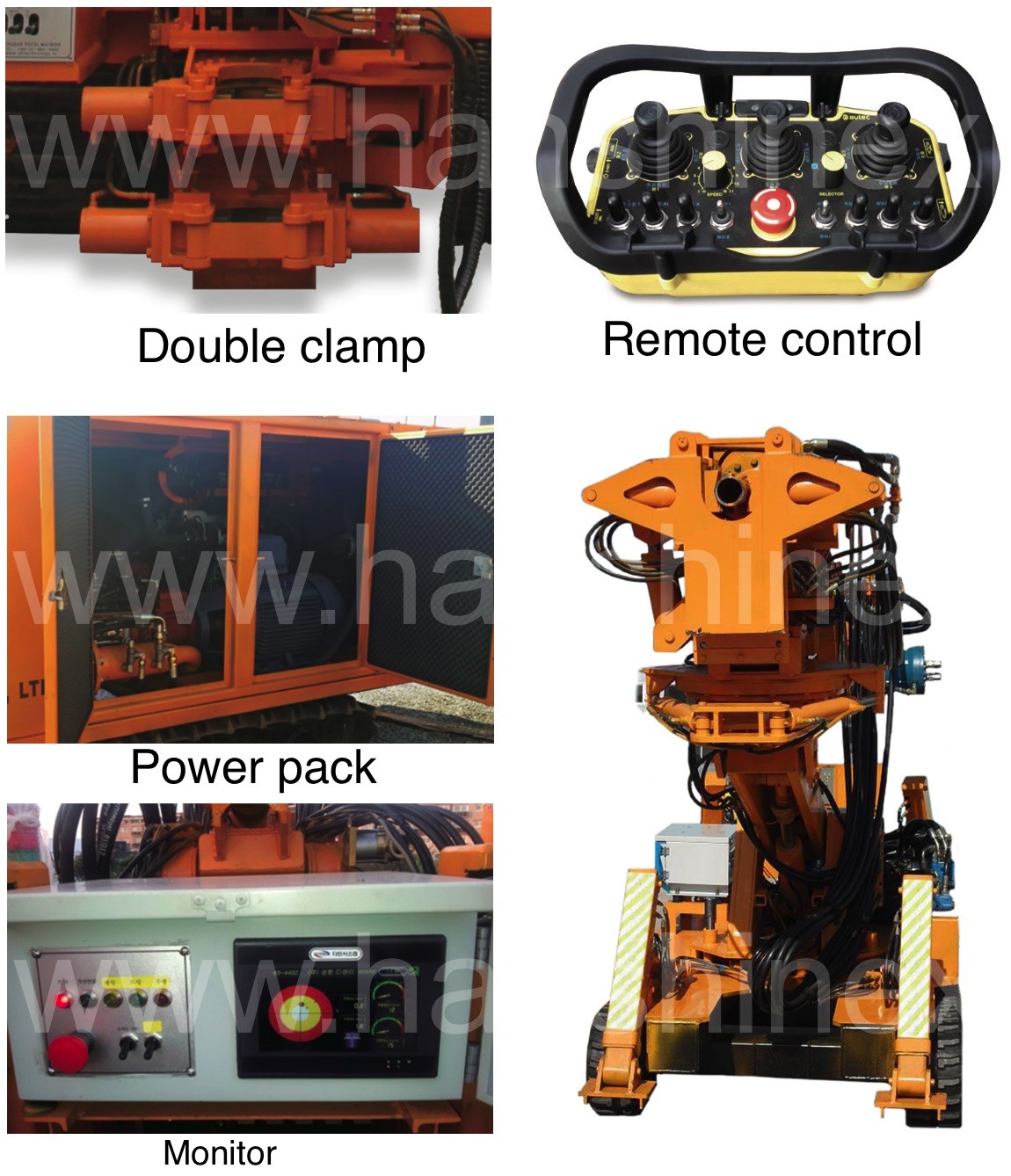

DETAILS

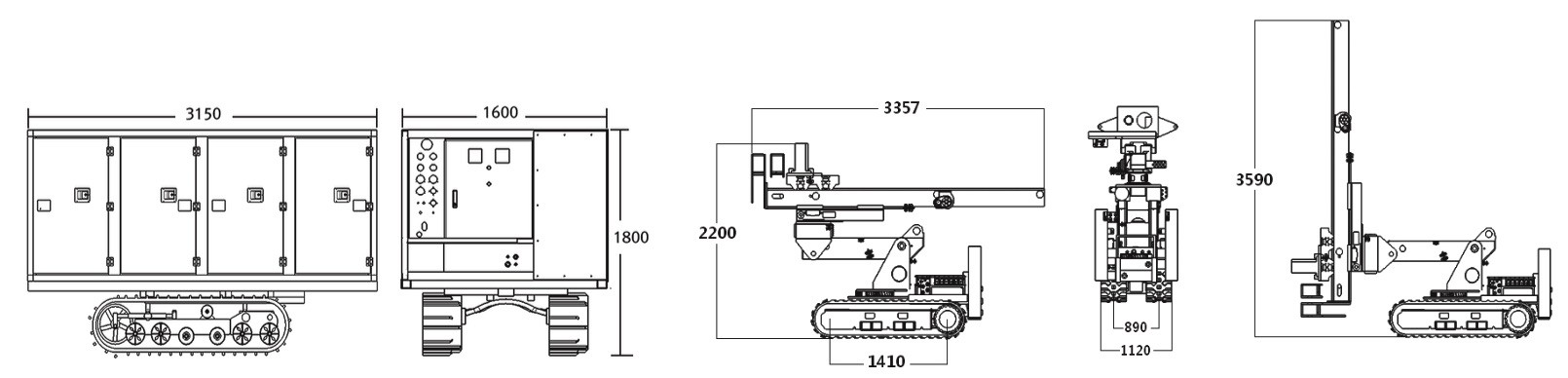

DEMENTIONS
TECHNICAL INFORMATION
| MODEL | HS-100MD | HS-4000EX | HS-5000W |
|---|---|---|---|
| Engine | |||
| Model | Hyundai mighty | Hyundai mighty | Hyundai mighty |
| Rated power | 120hp/1800rpmp | ||
| Electric Motor | |||
| Rated power | 75hp/1740rpm/55kw | ||
| Hydraulic Pump | |||
| Model | 1*K63v x 1*SAP20cc | ||
| Crawler Undercarriage | |||
| Width | 800~1120mm | ||
| Max. speed | 4.0km/h | ||
| Gradient | 25 degree | ||
| Rotary | |||
| Torque/rpm | 49.2~203 kg.m/0~1200rpm | ||
| Mast | |||
| Stroke | 1000~3000mm | ||
| Pull up | 6ton | ||
| Pull down | 6ton | ||
| Hyd. double clamp | |||
| Clamp force | 15.8ton | ||
| Useful passage | 45~180mm | ||
| Drilling Capacity | 60m | ||
| Weight | 2500kg |
